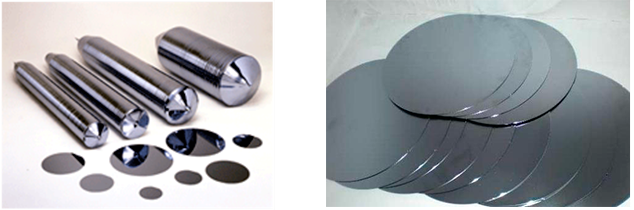

The Raw Silicon Wafer
Specifications: 3 inch to 4 inch monocrystalline silicon N light silicon chip, 3 inch to 4 inch silicon N/P type silicon wafer

By adding phosphorus or boron doped, using MCZ technology, the production size is 3 inch, 4 inch, 0.003-55 resistor.Cm, 200-350um thickness of different type N or type P monocrystalline silicon wafer, and silicon wafer edge positioning production according to customer requirements, chamfered silicon, N silicon, P silicon etc. the resistivity and thickness, production according to customer requirements.

File name: File download
The Raw Silicon Wafer parameter configuration table
3-inch mono crystal silicon N-type light doped waferparameter configuration table
4-inch mono crystal silicon N-type light doped wafer parameter configuration table
3-inch mono crystal silicon heavy doped wafer parameter configuration table
4 inch monocrystal silicon heavy doped wafer parameter configuration table

3-inch mono crystal silicon N-type light doped wafer

ResistivityΩ·CM	Thicknessμm	Crystal Orientation	Lifeμs	External Diametermm	Dopant	Form				Radial uniformitty of resistivity
ResistivityΩ·CM	Thicknessμm	Crystal Orientation	Lifeμs	External Diametermm	Dopant	AS cut	Lapping	Chamfering	Flattingiece	Radial uniformitty of resistivity
5-10	200-350	<111>	＞100	76.2±0.3	Phosphorus	√	√	√	√	≤20%
10-15	200-350	<111>	＞100	76.2±0.3	Phosphorus	√	√	√	√	≤20%
15-20	200-350	<111>	＞100	76.2±0.3	Phosphorus	√	√	√	√	≤20%
20-25	200-350	<111>	＞100	76.2±0.3	Phosphorus	√	√	√	√	≤20%
25-30	200-350	<111>	＞100	76.2±0.3	Phosphorus	√	√	√	√	≤20%
30-35	200-350	<111>	＞100	76.2±0.3	Phosphorus	√	√	√	√	≤20%
35-40	200-350	<111>	＞100	76.2±0.3	Phosphorus	√	√	√	√	≤20%
40-45	200-350	<111>	＞100	76.2±0.3	Phosphorus	√	√	√	√	≤20%
45-50	200-350	<111>	＞100	76.2±0.3	Phosphorus	√	√	√	√	≤20%
50-55	200-350	<111>	＞100	76.2±0.3	Phosphorus	√	√	√	√	≤20%

4-inch mono crystal silicon N-type light doped wafer

ResistivityΩ·CM	Thicknessμm	Crystal Orientation	Lifeμs	External Diametermm	Dopant	Form				Radial uniformitty of resistivity
ResistivityΩ·CM	Thicknessμm	Crystal Orientation	Lifeμs	External Diametermm	Dopant	AS cut	Lapping	Chamfering	Flattingiece	Radial uniformitty of resistivity
5-10	200-350	<111>	＞100	101.6±0.3	Phosphorus	√	√	√	√	≤20%
10-15	200-350	<111>	＞100	101.6±0.3	Phosphorus	√	√	√	√	≤20%
15-20	200-350	<111>	＞100	101.6±0.3	Phosphorus	√	√	√	√	≤20%
20-25	200-350	<111>	＞100	101.6±0.3	Phosphorus	√	√	√	√	≤20%
25-30	200-350	<111>	＞100	101.6±0.3	Phosphorus	√	√	√	√	≤20%
30-35	200-350	<111>	＞100	101.6±0.3	Phosphorus	√	√	√	√	≤20%
35-40	200-350	<111>	＞100	101.6±0.3	Phosphorus	√	√	√	√	≤20%
40-45	200-350	<111>	＞100	101.6±0.3	Phosphorus	√	√	√	√	≤20%
45-50	200-350	<111>	＞100	101.6±0.3	Phosphorus	√	√	√	√	≤20%
50-55	200-350	<111>	＞100	101.6±0.3	Phosphorus	√	√	√	√	≤20%

3-inch mono crystal silicon heavy doped wafer

ResistivityΩ·CM	Thicknessμm	Crystal Orientation	Model	External Diametermm	Dopant	Form				Radial uniformitty of resistivity
ResistivityΩ·CM	Thicknessμm	Crystal Orientation	Model	External Diametermm	Dopant	AS cut	Lapping	Chamfering	Flattingiece	Radial uniformitty of resistivity
0.003-0.005	200-350	<111>	N/P	76.2±0.3	Phosphorus/Boron	/	√	√	√	/
0.005-0.008	200-350	<111>	N/P	76.2±0.3	Phosphorus/Boron	/	√	√	√	/
0.02-0.03	200-350	<111>	N/P	76.2±0.3	Phosphorus/Boron	/	√	√	√	/

4 inch monocrystal silicon heavy doped wafer

ResistivityΩ·CM	Thicknessμm	Crystal Orientation	Model	External Diametermm	Dopant	Form				Radial uniformitty of resistivity
ResistivityΩ·CM	Thicknessμm	Crystal Orientation	Model	External Diametermm	Dopant	AS cut	Lapping	Chamfering	Flattingiece	Radial uniformitty of resistivity
0.003-0.005	200-350	<111>	N/P	101.6±0.3	Phosphorus/Boron	/	√	√	√	/
0.005-0.008	200-350	<111>	N/P	101.6±0.3	Phosphorus/Boron	/	√	√	√	/
0.02-0.03	200-350	<111>	N/P	101.6±0.3	Phosphorus/Boron	/	√	√	√	/
