TVS Chip

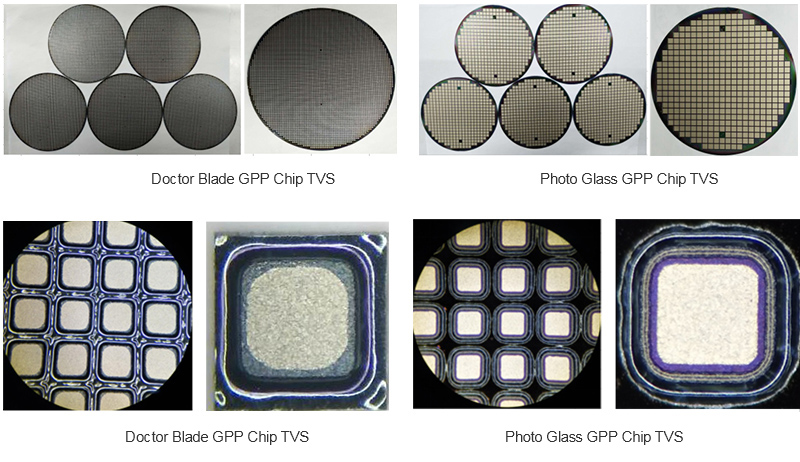

Our company provides 200W, 400W, 600W, 1500W, 5000W 6.8V to 400V A/CA (one way and two way) products, and it can provide two sizes of products, namely, guest size, tool scraping method and photo resist method GPP.
Now you can shock wave problem, give the company a low capacitance surge absorber, will limit the voltage "instant high Transient Voltage Suppressors (TVS) (transient voltage shock wave suppression), improve the reliability of service life and system equipment, so you no longer worry about thunder and lightning, the machinery and equipment to be damage,
- File name
- File download
- TVS chip parameter configuration table
-
- Standard grain specification table
-
- 600W electric meter
-
Standard grain specification table
|
Chip size |
Package |
|
45 |
P2 |
|
60 |
P4KE, BZW04,SMAJ, P4SMA |
|
70 |
SMA, SMA5J, P4SMA |
|
80 |
P6KE, SMBJ,P6SMB |
|
90 |
SMB8J |
|
114 |
SMCJ |
|
125 |
1P5KE, 1P5SMC |
FEATURE
Low power loss
High surge capability
Glass passivated chip junction
Available in Unidirectional and Bidirectional
(For Bidirectional types, use A or CA suffix, e.g. P6KE400CA)
Ultra-fast recovery time for high efficiency
High temperature soldering guaranteed
600W electric meter
|
MAXIMUM RATINGS(TA = 25 °C unless otherwise noted) |
|||
|
PARAMETER |
Symbol |
VALUE UNI |
units |
|
Peak power dissipation with a 10/1000 μs waveform |
PPPM |
600 |
W |
|
Peak pulse current with a 10/1000 μs waveform |
IPPM |
see next table |
A |
|
Power dissipation on infinite heatsink at TL = 75 °C |
PD |
5.0 |
W |
|
Peak forward surge current, 8.3 ms single half sine-wave unidirectional only |
IFSM |
100 |
A |
|
Maximum instantaneous forward voltage at 50A for unidirectional only |
VF |
3.5/5.0 |
V |
|
Typical thermal resistance junction-to-lead |
Rth(jl) |
20 |
℃/W |
|
Typical thermal resistance junction-to--ambient |
Rth(ja) |
75 |
℃/W |
|
Storage and Operating Junction Temperature |
Tstg,Tj |
-55 to +175 |
℃ |
|
DEVICE TYPE |
BREAKDOWN VOLTAGE V(BR) (V)@ IT(1) |
TEST CURRENT IT(mA) |
STAND-OFF VOLTAGE VWM (V) |
MAXIMUM REVERSE LEAKAGE ID(uA)@VWM |
PEAK PULSE CURRENT IPPM(A)(2) |
MAXIMUM CLAMPING VOLTAGE VC(V)@ IPPM |
|
|
MIN |
MAX |
||||||
|
P6KE6.8 |
6.12 |
7.48 |
10 |
5.50 |
1000 |
55.6 |
10.8 |
|
P6KE6.8A |
6.45 |
7.14 |
10 |
5.80 |
1000 |
57.1 |
10.5 |
|
P6KE7.5 |
6.75 |
8.25 |
10 |
6.05 |
500 |
51.3 |
11.7 |
|
P6KE7.5A |
7.13 |
7.88 |
10 |
6.40 |
500 |
53.1 |
11.3 |
|
P6KE8.2 |
7.38 |
9.02 |
10 |
6.63 |
200 |
48.0 |
12.5 |
|
P6KE8.2A |
7.79 |
8.61 |
10 |
7.02 |
200 |
49.6 |
12.1 |
|
P6KE9.1 |
8.19 |
10.0 |
1.0 |
7.37 |
50 |
43.5 |
13.8 |
|
P6KE9.1A |
8.65 |
9.55 |
1.0 |
7.78 |
50 |
44.8 |
13.4 |
|
P6KE10 |
9.00 |
11.0 |
1.0 |
8.10 |
10 |
40.0 |
15.0 |
|
P6KE10A |
9.50 |
10.5 |
1.0 |
8.55 |
10 |
41.4 |
14.5 |
|
P6KE11 |
9.90 |
12.1 |
1.0 |
8.92 |
5.0 |
37.0 |
16.2 |
|
P6KE11A |
10.5 |
11.6 |
1.0 |
9.40 |
5.0 |
38.5 |
15.6 |
|
P6KE12 |
10.8 |
13.2 |
1.0 |
9.72 |
5.0 |
34.7 |
17.3 |
|
P6KE12A |
11.4 |
12.6 |
1.0 |
10.2 |
5.0 |
35.9 |
16.7 |
|
P6KE13 |
11.7 |
14.3 |
1.0 |
10.5 |
5.0 |
31.6 |
19.0 |
|
P6KE13A |
12.4 |
13.7 |
1.0 |
11.1 |
5.0 |
33.0 |
18.2 |
|
P6KE15 |
13.5 |
16.5 |
1.0 |
12.1 |
1.0 |
27.3 |
22.0 |
|
P6KE15A |
14.3 |
15.8 |
1.0 |
12.8 |
1.0 |
28.3 |
21.2 |
|
P6KE16 |
14.4 |
17.6 |
1.0 |
12.9 |
1.0 |
25.5 |
23.5 |
|
P6KE16A |
15.2 |
16.8 |
1.0 |
13.6 |
1.0 |
26.7 |
22.5 |
|
P6KE18 |
16.2 |
19.8 |
1.0 |
14.5 |
1.0 |
22.6 |
26.5 |
|
P6KE18A |
17.1 |
18.9 |
1.0 |
15.3 |
1.0 |
23.8 |
25.2 |
|
P6KE20 |
18.0 |
22.0 |
1.0 |
16.2 |
1.0 |
20.6 |
29.1 |
|
P6KE20A |
19.0 |
21.0 |
1.0 |
17.1 |
1.0 |
21.7 |
27.7 |
|
P6KE22 |
19.8 |
24.2 |
1.0 |
17.8 |
1.0 |
18.8 |
31.9 |
|
P6KE22A |
20.9 |
23.1 |
1.0 |
18.8 |
1.0 |
19.6 |
30.6 |
|
P6KE24 |
21.6 |
26.4 |
1.0 |
19.4 |
1.0 |
17.3 |
34.7 |
|
P6KE24A |
22.8 |
25.2 |
1.0 |
20.5 |
1.0 |
18.1 |
33.2 |
|
P6KE27 |
24.3 |
29.7 |
1.0 |
21.8 |
1.0 |
15.3 |
39.1 |
|
P6KE27A |
25.7 |
28.4 |
1.0 |
23.1 |
1.0 |
16.0 |
37.5 |
|
P6KE30 |
27.0 |
33.0 |
1.0 |
24.3 |
1.0 |
13.8 |
43.5 |
|
P6KE30A |
28.5 |
31.5 |
1.0 |
25.6 |
1.0 |
14.5 |
41.4 |
|
P6KE33 |
29.7 |
36.3 |
1.0 |
26.8 |
1.0 |
12.6 |
47.7 |
|
P6KE33A |
31.4 |
34.7 |
1.0 |
28.2 |
1.0 |
13.1 |
45.7 |
|
P6KE36 |
32.4 |
39.6 |
1.0 |
29.1 |
1.0 |
11.5 |
52.0 |
|
P6KE36A |
34.2 |
37.8 |
1.0 |
30.8 |
1.0 |
12.0 |
49.9 |
|
P6KE39 |
35.1 |
42.9 |
1.0 |
31.6 |
1.0 |
10.6 |
56.4 |
|
P6KE39A |
37.1 |
41.0 |
1.0 |
33.3 |
1.0 |
11.1 |
53.9 |
|
P6KE43 |
38.7 |
47.3 |
1.0 |
34.8 |
1.0 |
9.7 |
61.9 |
|
P6KE43A |
40.9 |
45.2 |
1.0 |
36.8 |
1.0 |
10.1 |
59.3 |
|
P6KE47 |
42.3 |
51.7 |
1.0 |
38.1 |
1.0 |
8.8 |
67.8 |
|
P6KE47A |
44.7 |
49.4 |
1.0 |
40.2 |
1.0 |
9.3 |
64.8 |
|
P6KE51 |
45.9 |
56.1 |
1.0 |
41.3 |
1.0 |
8.2 |
73.5 |
|
P6KE51A |
48.5 |
53.6 |
1.0 |
43.6 |
1.0 |
8.6 |
70.1 |
|
P6KE56 |
50.4 |
61.6 |
1.0 |
45.4 |
1.0 |
7.5 |
80.5 |
|
P6KE56A |
53.2 |
58.8 |
1.0 |
47.8 |
1.0 |
7.8 |
77.0 |
|
P6KE62 |
55.8 |
68.2 |
1.0 |
50.2 |
1.0 |
6.7 |
89.0 |
|
P6KE62A |
58.9 |
65.1 |
1.0 |
53.0 |
1.0 |
7.1 |
85.0 |
|
DEVICE TYPE |
BREAKDOWN VOLTAGE V(BR) (V) @ IT(1) |
TEST CURRENT IT(mA) |
STAND-OFF VOLTAGE VWM (V) |
MAXIMUM REVERSE LEAKAGE ID(uA) @VWM(3) |
PEAK PULSE CURRENT IPPM(A)(2) |
MAXIMUM CLAMPING VOLTAGE VC(V) @ IPPM |
|
|
MIN |
MAX |
||||||
|
P6KE68 |
61.2 |
74.8 |
1.0 |
55.1 |
1.0 |
6.1 |
98.0 |
|
P6KE68A |
64.6 |
71.4 |
1.0 |
58.1 |
1.0 |
6.5 |
92.0 |
|
P6KE82 |
73.8 |
90.2 |
1.0 |
66.4 |
1.0 |
5.1 |
118 |
|
P6KE82A |
77.9 |
86.1 |
1.0 |
70.1 |
1.0 |
5.3 |
113 |
|
P6KE91 |
81.9 |
100 |
1.0 |
73.7 |
1.0 |
4.6 |
131 |
|
P6KE91A |
86.5 |
95.5 |
1.0 |
77.8 |
1.0 |
4.8 |
125 |
|
P6KE100 |
90.0 |
110 |
1.0 |
81.0 |
1.0 |
4.2 |
144 |
|
P6KE100A |
95.0 |
105 |
1.0 |
85.5 |
1.0 |
4.4 |
137 |
|
P6KE110 |
99.0 |
121 |
1.0 |
89.2 |
1.0 |
3.8 |
158 |
|
P6KE110A |
105 |
116 |
1.0 |
94.0 |
1.0 |
3.9 |
152 |
|
P6KE120 |
108 |
132 |
1.0 |
97.2 |
1.0 |
3.5 |
173 |
|
P6KE120A |
114 |
126 |
1.0 |
102 |
1.0 |
3.6 |
165 |
|
P6KE130 |
117 |
143 |
1.0 |
105 |
1.0 |
3.2 |
187 |
|
P6KE130A |
124 |
137 |
1.0 |
111 |
1.0 |
3.4 |
179 |
|
P6KE140 |
126 |
154 |
1.0 |
112 |
1.0 |
3.0 |
200 |
|
P6KE140A |
133 |
147 |
1.0 |
119 |
1.0 |
3.1 |
192 |
|
P6KE150 |
135 |
165 |
1.0 |
121 |
1.0 |
2.8 |
215 |
|
P6KE150A |
143 |
158 |
1.0 |
128 |
1.0 |
2.9 |
207 |
|
P6KE160 |
144 |
176 |
1.0 |
130 |
1.0 |
2.6 |
230 |
|
P6KE160A |
152 |
168 |
1.0 |
136 |
1.0 |
2.7 |
219 |
|
P6KE170 |
153 |
187 |
1.0 |
138 |
1.0 |
2.5 |
244 |
|
P6KE170A |
162 |
179 |
1.0 |
145 |
1.0 |
2.6 |
234 |
|
P6KE180 |
162 |
198 |
1.0 |
146 |
1.0 |
2.3 |
258 |
|
P6KE180A |
171 |
189 |
1.0 |
154 |
1.0 |
2.4 |
246 |
|
P6KE200 |
180 |
220 |
1.0 |
162 |
1.0 |
2.1 |
287 |
|
P6KE200A |
190 |
210 |
1.0 |
171 |
1.0 |
2.2 |
274 |
|
P6KE220 |
198 |
242 |
1.0 |
175 |
1.0 |
1.7 |
344 |
|
P6KE220A |
209 |
231 |
1.0 |
185 |
1.0 |
1.8 |
328 |
|
P6KE250 |
225 |
275 |
1.0 |
202 |
1.0 |
1.7 |
360 |
|
P6KE250A |
237 |
263 |
1.0 |
214 |
1.0 |
1.7 |
344 |
|
P6KE300 |
270 |
330 |
1.0 |
243 |
1.0 |
1.4 |
430 |
|
P6KE300A |
285 |
315 |
1.0 |
256 |
1.0 |
1.4 |
414 |
|
P6KE350 |
315 |
385 |
1.0 |
284 |
1.0 |
1.2 |
504 |
|
P6KE350A |
333 |
368 |
1.0 |
300 |
1.0 |
1.2 |
482 |
|
P6KE400 |
360 |
440 |
1.0 |
324 |
1.0 |
1.0 |
574 |
|
P6KE400A |
380 |
420 |
1.0 |
342 |
1.0 |
1.1 |
548 |
|
P6KE440 |
396 |
484 |
1.0 |
356 |
1.0 |
0.95 |
631 |
|
P6KE440A1 |
442 |
462 |
1.0 |
376 |
1.0 |
1.0 |
602 |
|
P6KE440A |
418 |
462 |
1.0 |
376 |
1.0 |
1.0 |
602 |
|
P6KE480 |
432 |
528 |
1.0 |
389 |
1.0 |
0.88 |
686 |
|
P6KE480A |
456 |
504 |
1.0 |
408 |
1.0 |
0.91 |
658 |
|
P6KE510 |
459 |
561 |
1.0 |
413 |
1.0 |
0.82 |
729 |
|
P6KE510A |
485 |
535 |
1.0 |
434 |
1.0 |
0.86 |
698 |
|
P6KE540 |
486 |
594 |
1.0 |
437 |
1.0 |
0.78 |
772 |
|
P6KE540A |
513 |
567 |
1.0 |
459 |
1.0 |
0.81 |
740 |
